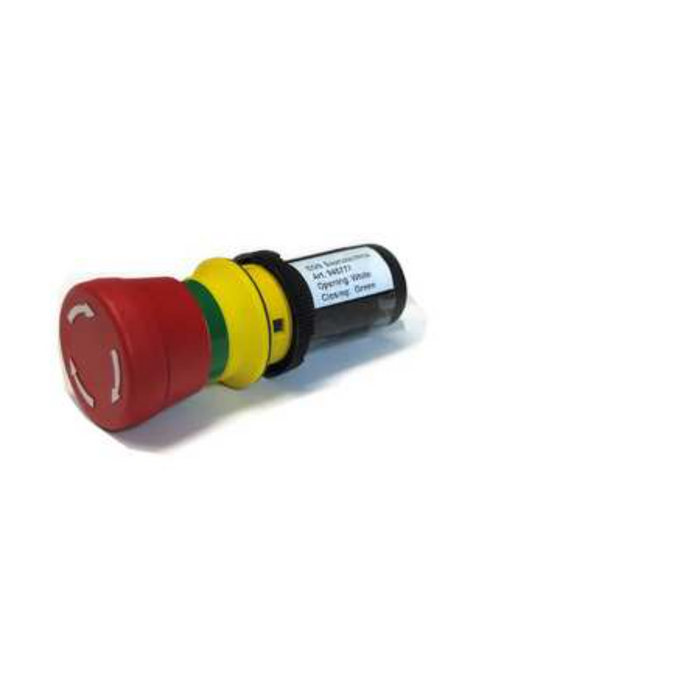

The EOS Emergency Shutoff is a wall-mounted safety switch that instantly cuts power to your sauna heater with a single press. The clearly marked red button connects to the heater via the overheating safety circuit for immediate shutoff — no navigating a control panel required. Two separate switching circuits allow an optional alarm or signaling device to be connected simultaneously for additional safety.

In the event of accidental activation, rotating the button clockwise to its standby position within 5 minutes resumes heater operation — after which a manual restart is required. An optional maple wood cover plate and installation kit are available for a cleaner wall finish. Designed, engineered, and built in Germany.

Features

• Single-press emergency shutoff — instantly cuts heater power via overheating safety circuit
• Clearly marked red button for fast identification in steamy or low-light sauna conditions
• Two separate switching circuits — compatible with optional third-party alarm or signaling equipment
• Accidental activation recovery — rotate clockwise within 5 minutes to resume operation
• Extended housing with screw fastening for wall-mounted installation
• Optional maple wood cover plate and installation kit available separately
• IP65 protection rating (visible part up to mounting point)
• Designed, engineered, and built in Germany
• 2-year warranty

Specifications

Cover plate

What's Included

Emergency Shutoff

• Emergency button
• Luster terminal block
• 2-year warranty

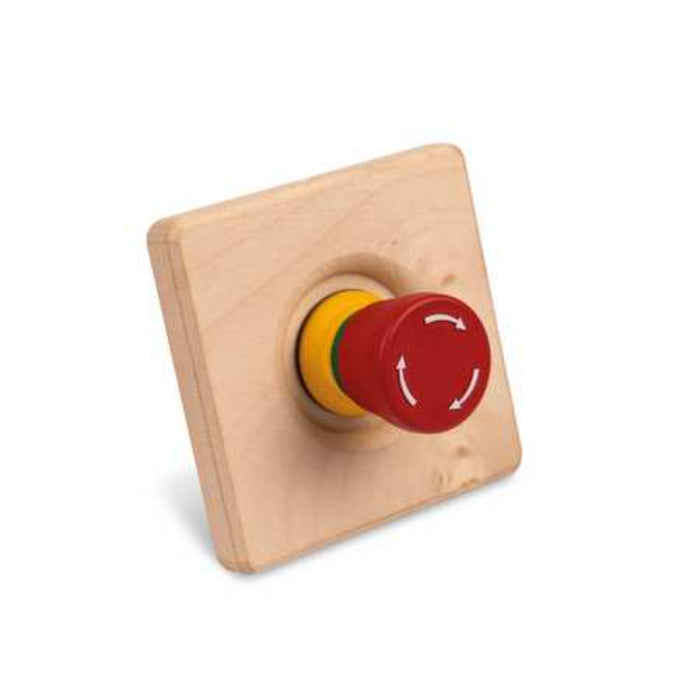

With Face Plate Kit

• Wooden plate 80×80mm
• Mounting frame
• Hollow wall box
• Screws 3×20mm (2)
• Screws 2.9×9.5mm (2)

Manuals
