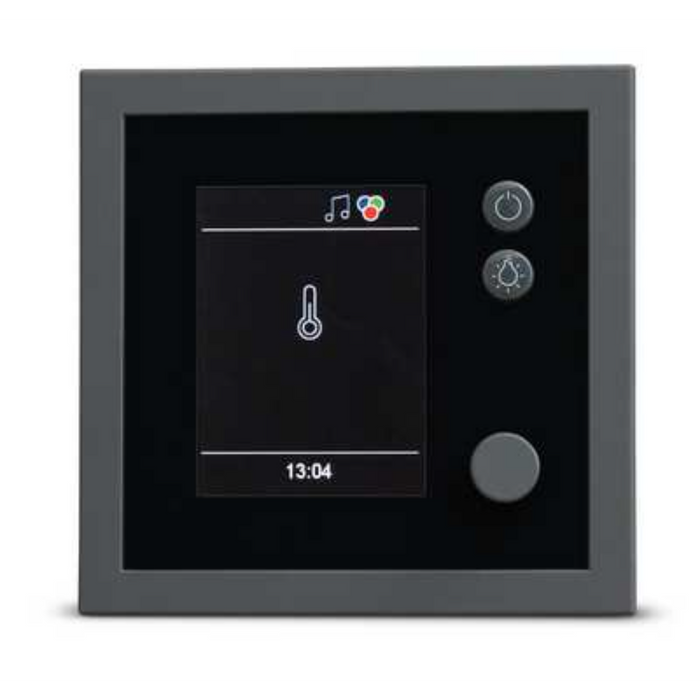

EOS EmoTec D Ditigal Sauna Control Unit - Black (Anthracite Trim)

EOS EmoTec D Digital Sauna Control Unit

EOS Logo
Verified Badge Authorized Dealer
Manufacturer's Warranty Included
Save $376.50 Save $376.50
$1,255.00
$1,255.00 - $1,255.00
$1,255.00
$878.50
$878.50 - $878.50
$878.50
Free & Fast Shipping
No Sales Tax (Except WY)
30-Day Returns
SKU 14-948198
Select an Option: Black (Anthracite Trim)

The EOS EmoTec D is a all-in-one digital sauna control unit with a 3.5" TFT color display, designed for wall-mount or recessed installation in home and commercial sauna rooms. Navigation is handled through a jog-dial and two physical buttons, with a clear icon-based interface available in 19 languages.

Temperature is adjustable from 86°F to 194°F with a built-in digital sensor and safety temperature limiter. Additional outputs support third-party lighting, ventilation fans, and vaporizers for full cabin control from a single unit. Optional pin code protection, sleep mode, four custom user profiles, and on-site firmware updates via micro-SD card round out a control built for long-term reliable use. The EmoTec D requires a separate EOS Power Box (Power Distribution and Connection Kit) to operate your heater.

Features

  • 3.5" TFT color display — wall-mount or recessed installation
  • Jog-dial with two physical buttons for intuitive navigation
  • 19-language menu support
  • Digital temperature adjustment: 86°F–194°F (30°C–90°C)
  • Additional outputs for lighting, ventilation fans, and vaporizers
  • Optional pin code protection and 4 custom user profiles
  • Sleep mode for energy efficiency during idle periods
  • On-site firmware updates via micro-SD card
  • Power Box sold separately
  • CSA listed
  • Designed, engineered, and manufactured in Germany
  • 2-year warranty

Specifications

Available Finishes
Black (Anthracite Trim)

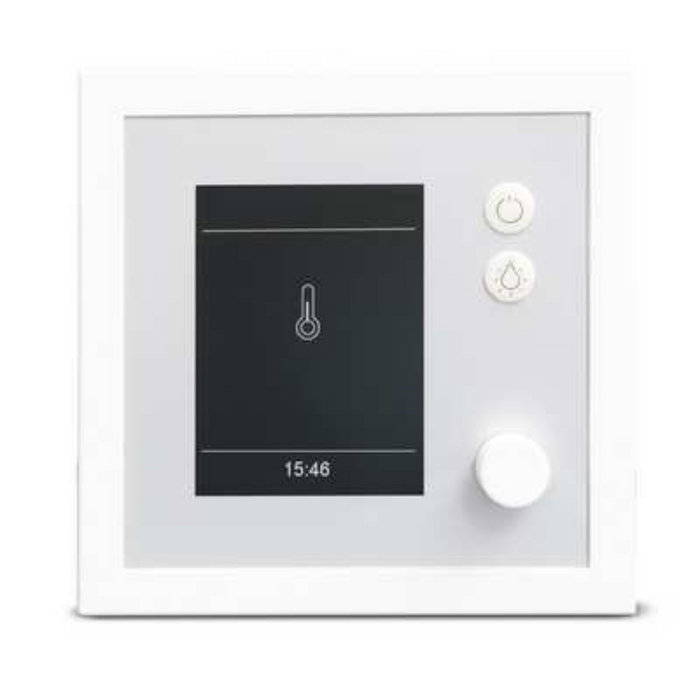

Silver (White Trim)
Display
3.5" TFT color screen
Temperature Range
86°F–194°F (30°C–90°C)
Heating Time Limitation
1 hour
Switching Capacity
18 kW, extendable
Installation
Wall-mount or recessed
Installation Distance
Up to 328 ft. (100 m)
Maximum Lighting Output
100 W
Maximum Fan Output
150 W
Safety Temperature Limiter (cabin)
282°F (139°C)
Safety Temperature Limiter (heater)
320°F (160°C)
Digital Sensor
194°F (90°C)
Housing Material (control)
Plastic
Safety Listing
CSA
Warranty
2 years
Control Panel Dimensions
5.1"W × 1"D × 5"H (13 × 2.5 × 12.7 cm)

What's Included

  • EmoTec D control panel
  • Wall-mount and recessed housing for control
  • Temperature sensor
  • 5m connecting cable with RJ10 plug
  • 5m connecting cable with RJ14 & RJ10 modular plug
  • Circuit board
  • Control panel removal tool
  • 4 cable glands
  • 4 wood screws 4×25mm
  • 2 screws 4×40mm
  • Installation and operation manual
  • 2-year warranty

Manuals & Resources

Installation & Operation Manual

Data Sheet
