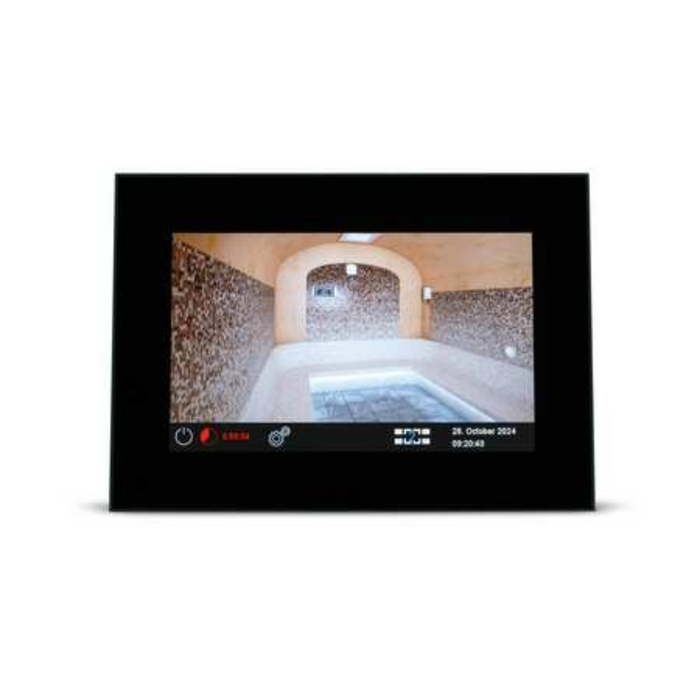

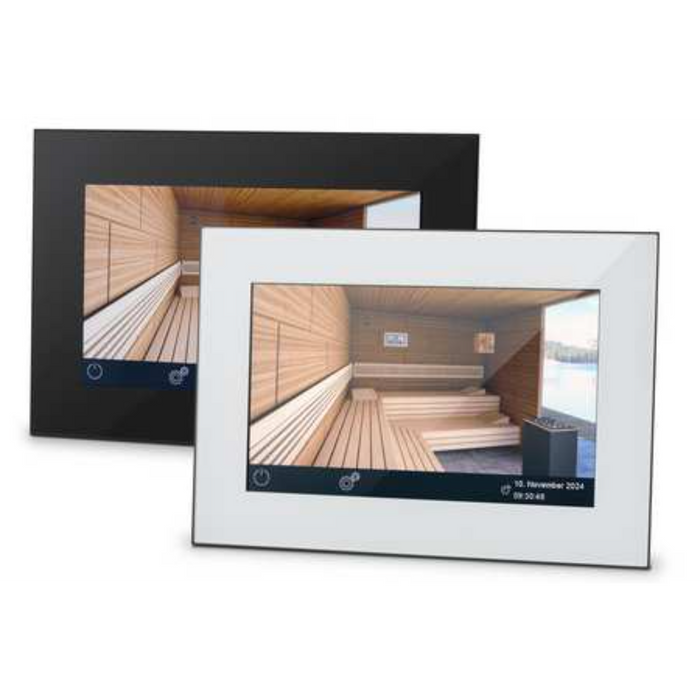

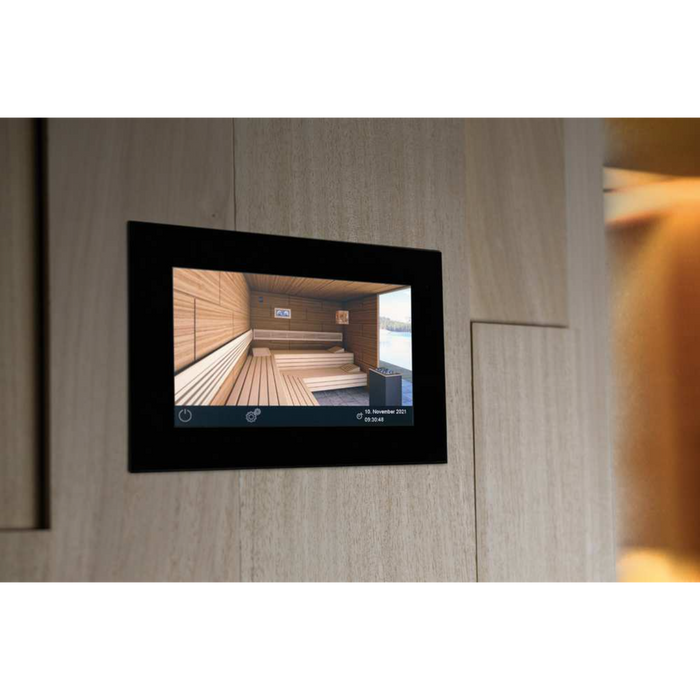

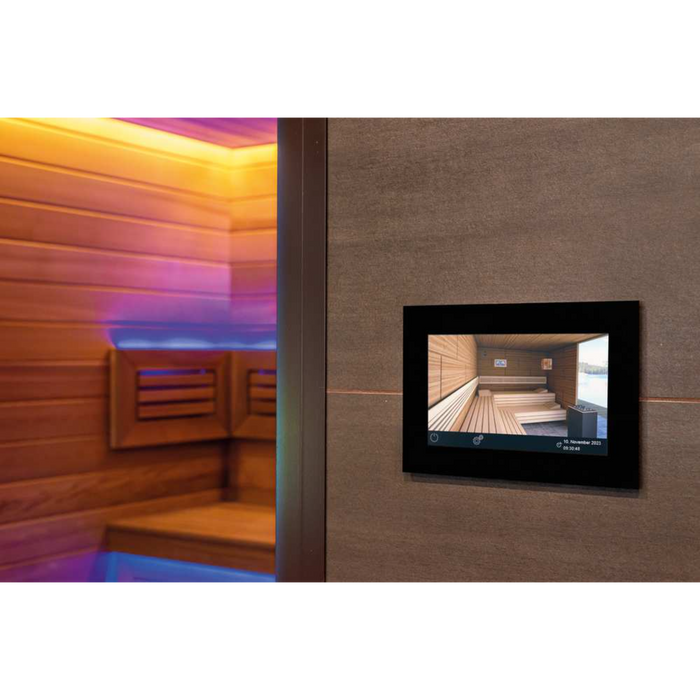

The EOS Touch 3 is a 7-inch capacitive touchscreen sauna control with flush-mount installation, designed for upscale residential and commercial sauna facilities. Its rimless glass display and configurable graphic interface give it a premium appearance while keeping all sauna functions accessible through a straightforward touch interface available in 20 languages.

Temperature is adjustable from 86°F to 194°F with a built-in digital sensor and safety temperature limiter. Additional outputs support third-party lighting, ventilation fans, and vaporizers for full cabin control. With extensions, a single Touch 3 can manage up to 8 sauna cabins simultaneously or individually. On-site firmware updates, system backup and restoration, and optional pin code protection ensure reliable long-term performance.

Features

• 7" capacitive color touchscreen — rimless glass, flush-mount installation

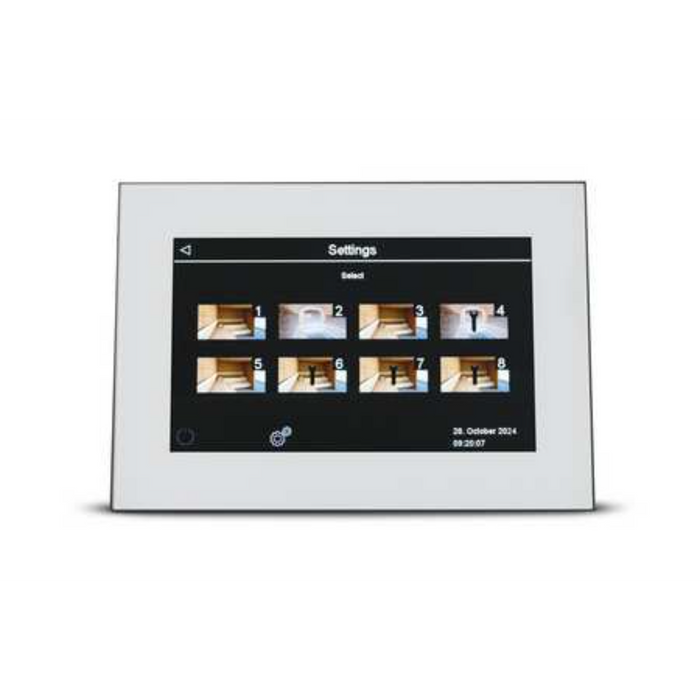

• Multi-cabin control for up to 8 sauna rooms simultaneously or individually (extensions required)

• Digital temperature adjustment: 86°F–194°F (30°C–90°C)
• Built-in digital sensor and safety temperature limiter

• Optional pin code protection
• 20-language menu support
• On-site firmware updates via system menu
• System backup and restoration for user preferences
• Power Box sold separately
• CSA listed
• Designed, engineered, and manufactured in Germany
• 2-year warranty

Specifications

What's Included

• Touch 3 control panel
• Recessed housing for control
• Temperature sensor
• 5m connecting cable with RJ10 plug and housing
• 5m connecting cable with RJ14 and RJ10 modular plug
• Circuit board
• 2 Control panel removal tools
• 4 cable glands
• 4 wood screws 4×25mm
• 2 screws 4×40mm
• Installation and operation manual
• 2-year warranty
