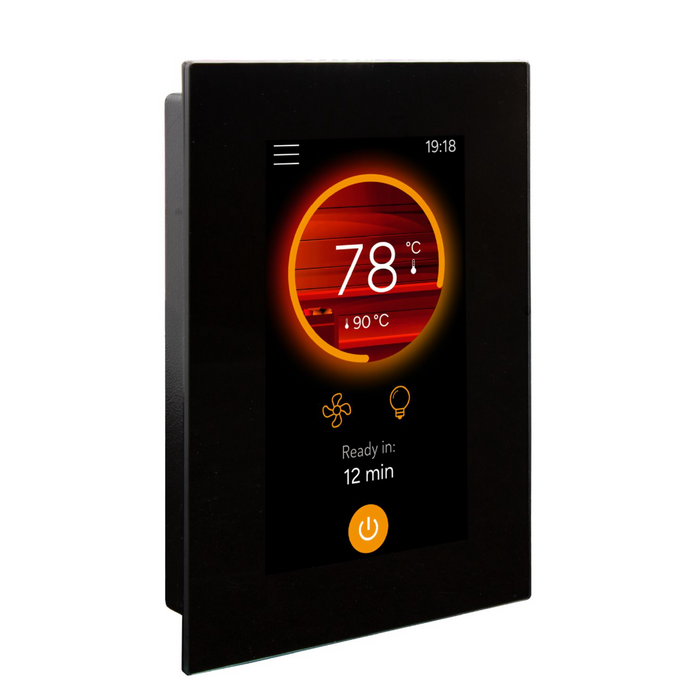

Harvia Fenix WiFi is a smart 4.3” glass touchscreen control panel designed for simple and convenient sauna operation. With an intuitive interface, it allows you to adjust temperature, humidity, ventilation, and lighting with ease.

Compatible with the MyHarvia mobile app, the Fenix WiFi includes three preset modes you can customize, along with the ability to create your own favorites. The system learns the heating behavior of your sauna heater and offers a smart scheduling feature so you can plan when the sauna will be ready.

Installation is straightforward thanks to the built-in setup wizard. The Fenix WiFi control panels also provide a plug-and-play upgrade for Harvia Xenio control panels. It can be installed inside the sauna, in a bathroom, or to your living room.

Features

• Replacement panel with WiFi for Fenix Control Systems (sold separately)
• Intelligent user interface that is precise and easy
• High-quality glass screen control panel
• Learns with AI and adapts to the performance of your sauna heater
• Wifi connectivity for remote control and monitoring
• Control panel operating temperature range from 104-194°F
• Surface of flush-mounted installation
• Installs inside or outside the sauna room
• Dimensions: 3.4"W (8.6 cm) x 1"D (2.5 cm) x 4.4"H (11.2 cm)
• 2-year warranty

Specifications

Power Consumption
600mW

Wi-Fi Frequency Band
2.4 GHz

Supply
12-24VDC

Connection
4-Pole + 12VDC, GND, RS485 A+B

Electrical Frequency
50/60Hz

Temperature Adjustment Range
104-194°F

Dimensions
Width: 3.4"
Depth: 1"
Height: 4.4"

What's Included

• Digital Control Panel
• Installation Materials
• Installation and Operation Manual
• 2-Year Warranty
