Harvia M3 16.5kW Wood-Burning Sauna Stove Package with Chimney Kit (Stainless Steel)
Authorized Dealer
Free & Fast Shipping
No Sales Tax (Except WY)
30-Day Returns
Assembly & Installation Service Available

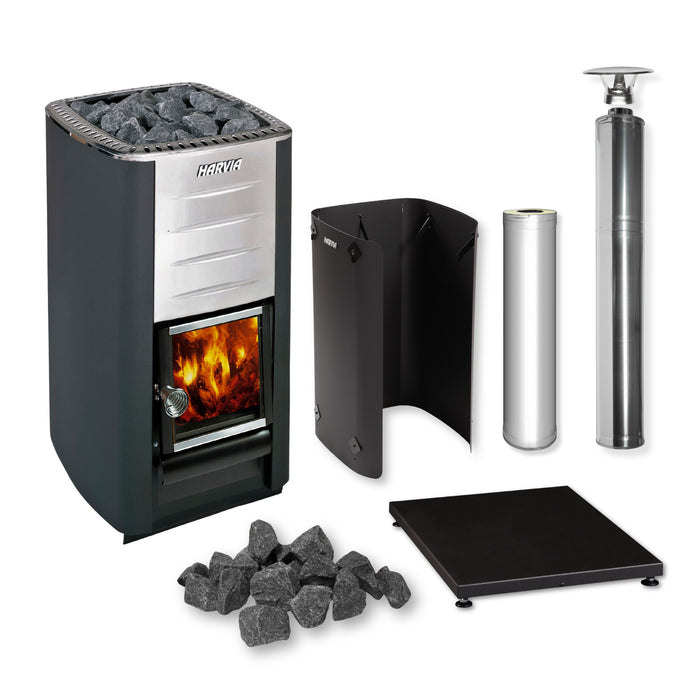

The Harvia M3 16.5kW Wood-Burning Sauna Stove Package with Chimney Kit comes complete with the M3 Sauna Stove, Protective Bedding, Protective Sheath, Chimney Kit, Chimney Extension, and Sauna Stones. This stainless steel stove package provides a traditional sauna ambiance in sauna rooms from 212 to 459 cubic feet (CF).
The Harvia M3 brings timeless Finnish design and traditional warmth to smaller saunas. Compact yet powerful, it delivers even heat and efficient air circulation, creating a balanced and comfortable sauna environment.
Finished in graphite black with a stainless steel air-flow spoiler, the M3 combines durability with classic style. Its cast-iron glass door showcases the soft glow of the fire, adding to the relaxing atmosphere of your sauna.
The M3 can also be equipped with an optional pipe model water heater, offering added functionality for your sauna setup.
Features
M3 Sauna Stove
- Wood-burning stove
- 16.5kW
- For sauna rooms from 212 to 459 cu. ft.
- 66 lbs of stone capacity
- Elegant graphite black
- Stainless steel air-flow spoiler
- Floor installation
- Designed, engineered, and made in Finland
- Dimensions: 15.4"W (39 cm) x 16.9"D (43 cm) x 28.15"H (72 cm)
- 2-year warranty
Protective Bedding
- Black aluminum-zinc coated steel
- Helps protect floors
- Adjustable feet
- Can be installed on a sloping floor
- For wood-burning sauna stoves
- Dimensions: 18.5"W (47 cm) x 26.2"D (67 cm) x 2.4"-3"H (6-8 cm)
Protective Sheath
- Black steel
- 3-sided sheath
- Reduces safety distance to combustible materials
- Dimensions: 17.9"W (46 cm) x 19.3"D (49 cm) x 31.5"H (80 cm)
Chimney Kit
- Stainless steel
- CE marking
- Mineral wool insulation material
- Mounts in vertical position
- Able to be easily extended
- Touch protection not needed if installed in a sauna
- Soot fire resistant
- Freeze thaw resistant
- Designed, engineered, and made in Finland
- Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 59.1"H (150 cm)
Chimney Extension
- Stainless steel
- Prevents movement caused by temperature changes
- Can be installed indoors and outdoors
- Designed, engineered, and made in Finland
- Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 39.4"H (100 cm)
Sauna Stones
- Olivine diabase sauna stones
- Split-face shape
- Durable with high-heat capacity
- Stones range from 4" to 6" (10-15 cm)
Specifications
Stove Kilowatt Rating (KW)
16.5kW
Primary Fuel
Wood
Minimum Firewood Length
14"
Diameter of Firewood
3-6"
Room Sauna Volume
212-459 CU. FT.
Minimum Room Height
47"
Flue Connection Location
Top and Back
Heater Weight
99 lbs
Shipping Weight with Sauna Stones
165 lbs
Stove Dimensions
Width: 15.4"
Depth: 16.9"
Height: 28.2"
Protective Bedding | WL100
Black, Stainless Steel
Dimensions: 18.5"W x 26.2"D x 2.4-3"H
Weight: 23.6 lbs
Protective Sheath | WL450
Black, Stainless Steel
Dimensions: 17.9"W x 19.3"D x 31.5"H
Weight: 15.4 lbs
Chimney Kit | WHP1500
Stainless Steel
Non-Vertical Installations: Not Allowed
Weight: 24.9 lbs
Dimensions: 8.7"W x 8.7"D x 59.1"H
Chimney Extension | WHP1000
Stainless Steel
Non-Vertical Installations: Not Allowed
Wind Load: 6.5 ft (2m) Above Last Support
Flexural Strength-Tensile Strength: 16.4 ft (5m)
Maximum Spacing of Lateral Supports: 9.8 ft (3m)
Weight: 14.8 lbs
Dimensions: 8.7"W x 8.7"D x 39.4"H
What's Included
- M3 Sauna Stove | WKM3
- Sauna Stove
- Stove Door
- Ash Box
- Sauna Stove
- 88 lbs (2 Boxes) of 4" to 6" (10-15 cm) Split-Face Sauna Stones | AC3020
- Small Protective Bedding | WL100
- Protective Sheath Panel | WL450
-
Stainless Steel Chimney Kit | WHP1500
- Chimney
- Utility Box
- Non-Insulated Smoke Pipe
- Rain Cap
- Rubber Rain Flange
- Installation Set for Rain Flange
- Stainless Steel Lead-Through Flange for Ceiling
- Lead-Through Insulation and Protector
- 1000mm Stainless Steel Chimney Extension | WHP1000
- Installation and Operation Manual
