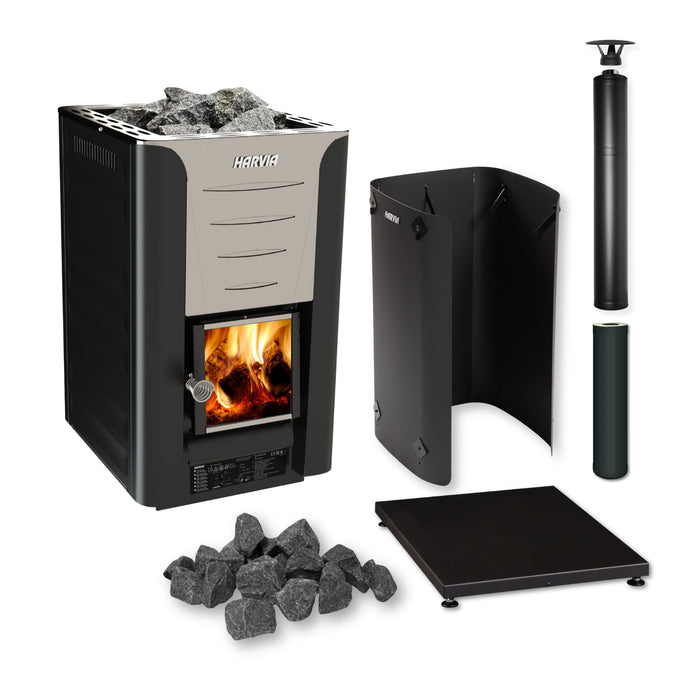

The Harvia Pro 20 24kW Wood-Burning Sauna Stove Package with Chimney Kit comes complete with the Pro 20 Sauna Stove, Protective Bedding, Protective Sheath, Chimney Kit, Chimney Extension, and Sauna Stones. This black stove package offers a satisfying sauna bath experience for sauna rooms medium-sized saunas from 283 to 706 cubic feet (CF).

The heater heats up sauna quickly and provides hot sauna baths. The cast-iron glass hatch creates cozy atmosphere in the sauna. The model has adjustable feet for easy installation, which makes the heater to be stable on un-even ground and it also make it easy to adjust the height of the chimney opening to the right height. The heater can be equipped with a separate chimney model water tank. The outer casing of the heater is painted graphite black.

Features

Pro 20 Sauna Stove

• Wood-burning
• 24kW
• Graphite black color
• Stainless steel construction
• Floor model
• Adjustable feet
• Designed, engineered, and made in Finland
• For sauna rooms from 283 to 706 cu. ft.
• 88 pound stone capacity
• Dimensions: 16.9"W (43 cm) x 20"D (51 cm) x 29.9-31.1"H (76-79 cm)
• 2-year warranty

Protective Bedding

• Black aluminum-zinc coated steel
• Helps protect floors
• Adjustable feet
• Can be installed on a sloping floor
• For wood-burning sauna stoves
• Dimensions: 18.5"W (47 cm) x 26.2"D (67 cm) x 2.4"-3"H (6-8 cm)

Protective Sheath

• Black steel
• 3-sided sheath
• Reduces safety distance to combustible materials
• Dimensions: 19.7"W (50 cm) x 22.4"D (57 cm) x 32.3"H (82 cm)

Chimney Kit

• Black powder-coated steel
• CE marking
• Mineral wool insulation material
• Mounts in vertical position
• Able to be easily extended
• Touch protection not needed if installed in a sauna
• Soot fire resistant
• Freeze thaw resistant

• Designed, engineered, and made in Finland
• Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 59.1"H (150 cm)

Chimney Extension

• Black powder-coated steel
• Prevents movement caused by temperature changes
• Can be installed indoors and outdoors
• Designed, engineered, and made in Finland
• Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 39.4"H (100 cm)

Sauna Stones

• Olivine diabase sauna stones
• Split-face shape
• Durable with high-heat capacity
• Stones range from 4" to 6" (10-15 cm)

Specifications

Stove Kilowatt Rating (KW)
24kW

Primary Fuel
Wood

Minimum Firewood Length
15"

Diameter of Firewood
3-6"

Room Sauna Volume
283-706 CU. FT.

Minimum Room Height
82"

Flue Connection Location
Top and Back

Heater Weight
132 lbs

Shipping Weight with Sauna Stones
220 lbs

Stove Dimensions
Width: 16.9"
Depth: 20"
Height: 29.9-31.1"

Protective Bedding | WL100
Black, Stainless Steel
Dimensions: 18.5"W x 26.2"D x 2.4-3"H
Weight: 23.6 lbs

Protective Sheath | WL550
Black, Stainless Steel
Dimensions: 19.7"W x 22.4"D x 32.3"H
Weight: 17.4 lbs

Chimney Kit | WHP1500M
Black, Stainless Steel
Non-Vertical Installations: Not Allowed
Weight: 24.9 lbs
Dimensions: 8.7"W x 8.7"D x 59.1"H

Chimney Extension | WHP1000M
Black, Stainless Steel
Non-Vertical Installations: Not Allowed
Wind Load: 6.5 ft (2m) Above Last Support
Flexural Strength-Tensile Strength: 16.4 ft (5m)
Maximum Spacing of Lateral Supports: 9.8 ft (3m)
Weight: 14.8 lbs
Dimensions: 8.7"W x 8.7"D x 39.4"H

What's Included

• Pro 20 Sauna Stove | WKPR20M
  • Sauna Stove

  • Stove Door
  • Ash Box

  • Adjustable Legs
• 88 lbs (2 Boxes) of 4" to 6" (10-15 cm) Split-Face Sauna Stones | AC3020
• Small Protective Bedding | WL100
• Protective Sheath Panel | WL550
• Black Chimney Kit | WHP1500M
  • Chimney
  • Utility Box
  • Non-Insulated Smoke Pipe
  • Rain Cap
  • Rubber Rain Flange
  • Installation Set for Rain Flange
  • Stainless Steel Lead-Through Flange for Ceiling
  • Lead-Through Insulation and Protector
• 1000mm Black Chimney Extension | WHP1000M
• Installation and Operation Manual
